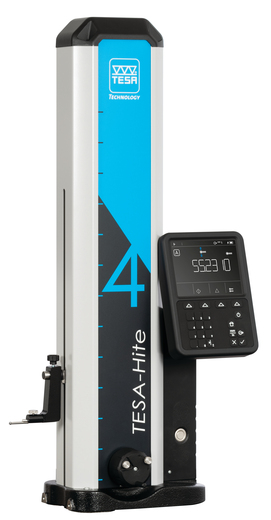

TESA-HITE 400

This manual 1D height gauge with its refined panel and its easily-accessible software is typically used in workshops. It focuses on the main functions necessary for quick measurements and immediate access to the results

• PANEL
- Protected against the penetration of liquids or dust (IP65)
- Big colour screen for better reading in dimly lit surroundings
- Black display background for excellent contrast
- Large numbers displayed on the screen (21 mm) for optimal readability
- Keyboard with few buttons for easy learning without confusion

• AUTONOMY
- Long battery life (60h) to avoid too frequent recharging

• MEASURE
- Philosophy of use similar to tablets or smartphones
- Quick access to the first measurement from start up (<4s) for a significant time saving
- QUICKCENTER DYNAMIC technology integrated to efficiently determine the culmination points
- Context-based help to avoid incorrect use and bad results
- The interface can be customized according to the user's wishes

• SCS CALIBRATION CERTIFICATE
- Free SCS certificate provided to avoid additional costs for re-calibration at the initial purchase

Measuring force                                        1,5 ± 0,5 N
Units                                                                 mm / in
Standard                                                         Factory standard
Resolution                                                     0,0001 / 0,001 / 0,01 mm .00001 / .0001 / .001 in
Zero                                                                   Fixed
Coefficient of linear expansion         (12 ± 1,5) x 10-6 K-1
Material Base:                                             cast iron
Degree of protection Panel:                IP65
Particular characteristic(s)                  Integrated fine adjustment Air cushion system
Weight                                                             Model 400: 24 kg
Power supply                                               Power connection Rechargeable interchangeable battery
Function(s)                                                    Manual displacement of the measuring probe
Autonomy                                                      ≈ 60 hours
Included in delivery                                 SCS calibration certificate Declaration of conformity
Data output(s)                                             TLC

Part number                                                  00730084
Short designation                                      TH 400
Complete designation                            TESA-HITE 400
Measuring range [mm]                           415
Measuring range [in]                               16
Application range [mm]                         570
Application range [in]                              22
Max. perm. errors [µm]                           2,5 + 4L
Max. perm. errors [in]                              .0001 + .000004L
Repeatability limit [µm] On surface: ≤ 2 On arc: ≤ 3
Repeatability limit [in] On surface: ≤ .0001 On arc: ≤ .00015
Max. perm. perp. error [µm]                9
Max. perm. perp. error [in]                   .00035
Measuring force [N]                                1,5 ± 0,5
Execution                                                       Manual
