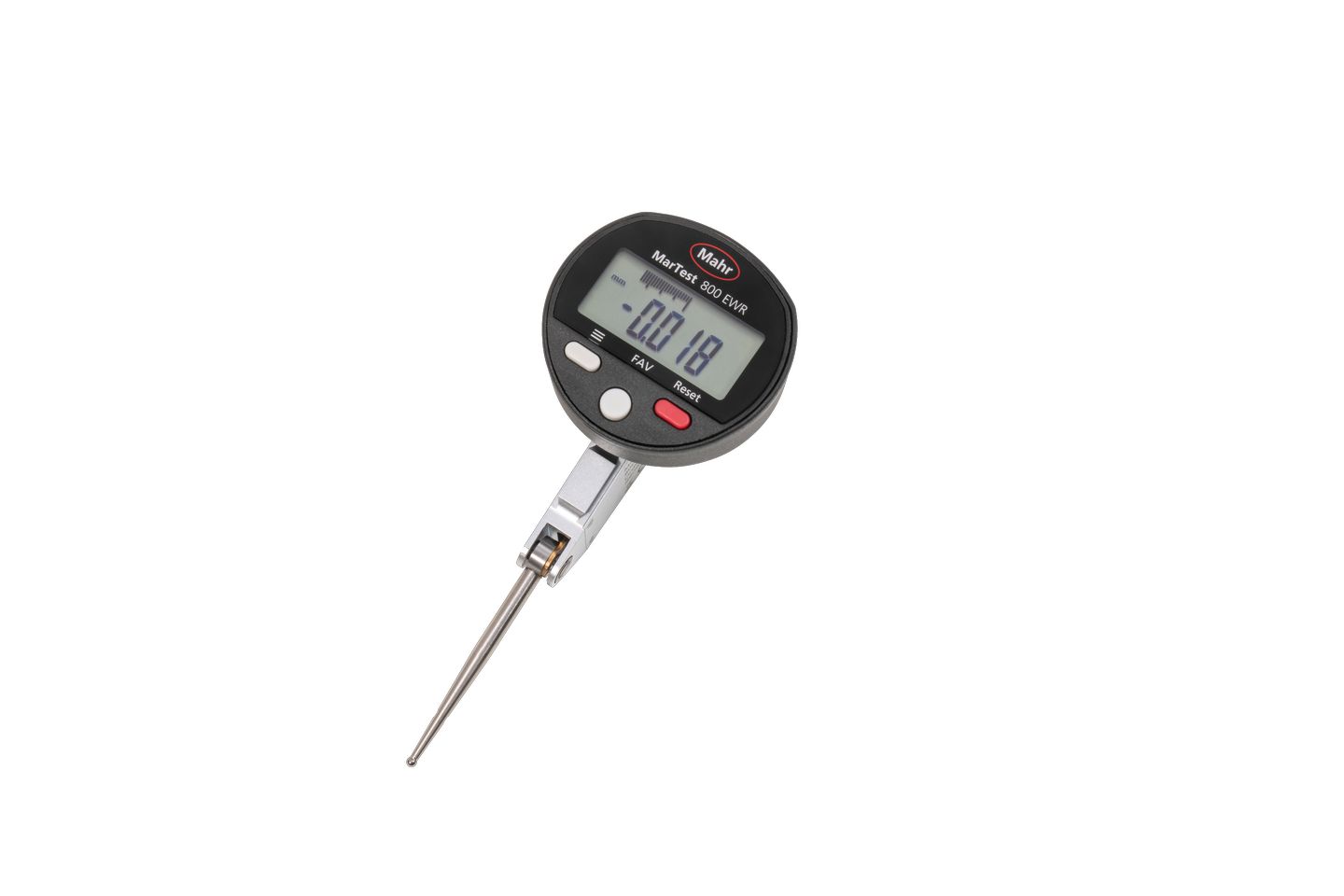

MarTest 800 EWR Digital Test Indicator
Measuring range : ± 2.2 mm
Resolution mm/inch: 0.001 / .00005"
Package contains: spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8, test certificate, instruction manual, battery, case
Functions
ON/OFF, RESET (set display to zero), mm/inch, MAX/MIN memory for searching the reversal point, (MAX-MIN) for testing flatness and concentricity
Application
• Measurement of concentricity, alignment, parallelism and flatness
• Centering of bores and shafts
• Parallel or perpendicular alignment of work pieces
Product features
• Inductive measuring system
• Battery life approx. 2 years
• Operating unit is protected against coolants and lubricants, protection class IP65
• Combined analog and digital display
• Operating and display unit (bezel) can be rotated through 360°
• Satin chrome finished housing with 3 dovetail guideways
• Shockproof
• Movement bearings are jeweled
• Automatic matching to sensing direction
• Anti-magnetic
• Double lever supported in ball bearings
• Overload protection provided by slip clutch
