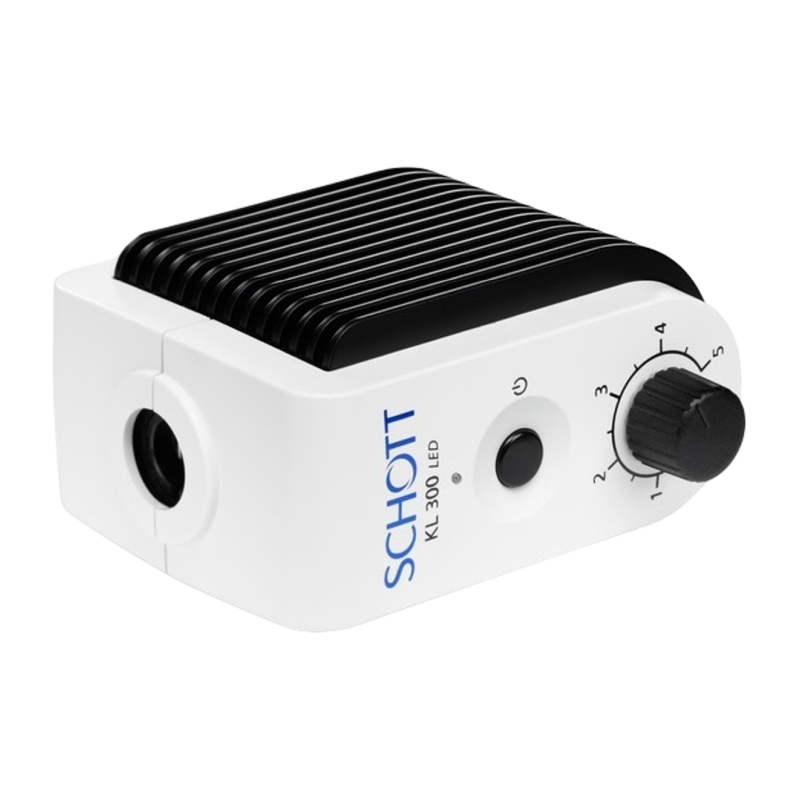

KL 300 LED

General
Part No. 120.300
Dimensions (W x D x H) (mm) / (inch) 107 x 114 x 61 / 4.2” x 4.5” x 2.4”
Weight (kg) Approx. 0.35
Cooling Convection

Electrical
Operating voltage, frequency 100 – 240 V ~, 50 – 60 Hz
Input voltage (V) 9
Power consumption (VA) max. 5
Protection class II
Overvoltage category II
Lamp type 1 High power LED white
Lamp lifetime (h) 50,000 ¹

Light Output
Luminous flux (Im) 80 ²
Color temperature (K) Approx. 5,600
Active light guide diameter (mm) / (inch) Max. 6/max. 0.23”

Certification marks
Marking
EMC-class B

¹ max. decline of light output to 70% of origin level
² at the output of SCHOTT fiber optic light guide, 1-arm, flexible, Ø 4.5 mm active, length 600 mm
