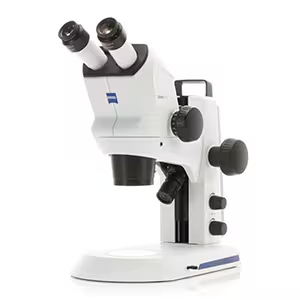

Stereomicroscope Stemi 508 with stand K EDU and Double Spot Illuminator K LED
Microscope Body Stemi 508 (435064-9001-000)
- Apochromatic greenough system
- Manually operable zoom 8:1 (0.63x...5.0x) on both sides
- Switchable zoom clickstops 0.63x-0.8x-1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x
- Free working distance 92 mm (without dust protection glass)
- Viewing angle 35° with adjustable interocular distance 55...75 mm
- Eyepiece mount 30 mm with maximum field number 23 mm
- Mount D=76 mm for Stemi mount/Mount S - Interface D=53 mm for illuminators
- Thread M49/50 for front optics or analyzer
Additionally included:
- Eyepieces PL 10x/23 Br. foc.
- Dust protection glass M50 with M49x0.75
Stand K EDU (435425-9000-000)
- Stand base D310xW200xH35 mm
- Working surface D195xW160 mm
- Interfaces d=84 mm for stages and d=45 mm for TL polarizer
- Column 250 mm with drive and handle, lifting range 145 mm
- Stemi mount d=76 mm, load capacity 5 Kg, adjustable friction
- Built-in LED transillumination brightfield/darkfield, switchable
- 2x sockets for IVI and illuminator K LED
- Separate RL/TL controls for on/off/dimming
- Integrated power unit 12V DC 24W/100...240V AC/50...60Hz
Additionally included:
- Glass plate D=84x5 mm
- Country-specific power cable EURO C8
- Dust cover
Spot Illuminator K LED (435525-9010-000)
- Single spot for brightfield and darkfield epi-illumination
- Thread M24x0.5 for polarizer
- Height adjustable, inclinable, zoomable
- For stands K EDU/LAB/MAT and stand M LED
Double Spot Illuminator K LED (435525-9020-000)
- Gooseneck double spot, 2x 160 mm for variable epi-illumination
- 2x thread M24x0.5 for polarizer
- Height adjustable
- For stands K EDU/LAB/MAT and stand M LED
Ring Illuminator K LED segmentable (435525-9050-000)
- 48 LEDs in 2 rows, tilted
- FWD 50...300 mm, mount d=66 mm
- Separate controls for segmentation and rotation
- 4 modes: Full, half, quarter circle, 2 facing quarter circles
- Manual turning in 90° steps or continuous rotation
- For stands K EDU/LAB/MAT, stand M LED or controller K LED
Holding ring A53 --> d=66 mm (455182-0000-000)
attached to Greenough body or front lens <1x, the ring requires 15.5 mm of working distance; on front lens >1x, 0 mm or 15.5 mm of working distance are required, depending on ring orientation
Eyepiece eyecup 2x (444801-0000-000)
