  • PTQ151-1

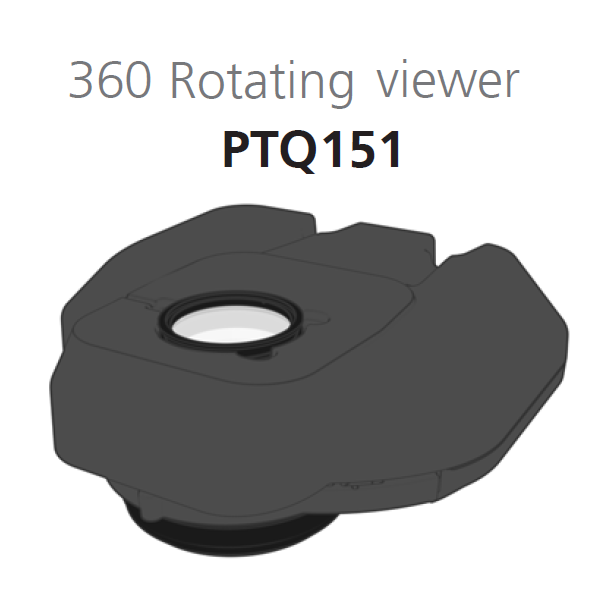

360º Rotating viewer

Objective  in rotating view:15.7x-157x magnification. Working Distance 35.5mm. Max Fov22mm Horizontal Min FoV 3.7mm (34° from vertical)
Objective  in direct view:15.7x-157x magnification. Working Distance 35.5mm. Max Fov21.5mm Horizontal Min FoV 2.2mm 360° rotating viewer includes integrated LED ringlight & objective lens Read more
€ 3.175,00 (€ 3.778,25 incl. VAT)
Ordercode PTQ151
Spin UpSpin Down

Objective  in rotating view:15.7x-157x magnification. Working Distance 35.5mm. Max Fov22mm Horizontal Min FoV 3.7mm (34° from vertical)
Objective  in direct view:15.7x-157x magnification. Working Distance 35.5mm. Max Fov21.5mm Horizontal Min FoV 2.2mm

360° rotating viewer includes integrated LED ringlight & objective lens
