Key Features
• 7X-45X continuous zoom magnification power
• Super widefield optics offer crystal clear images
• 1-1/4" super widefield view and 4" working distance
• Contemporary sturdy all-metal pillar stand
• Trinocular port for adding photo or video capability

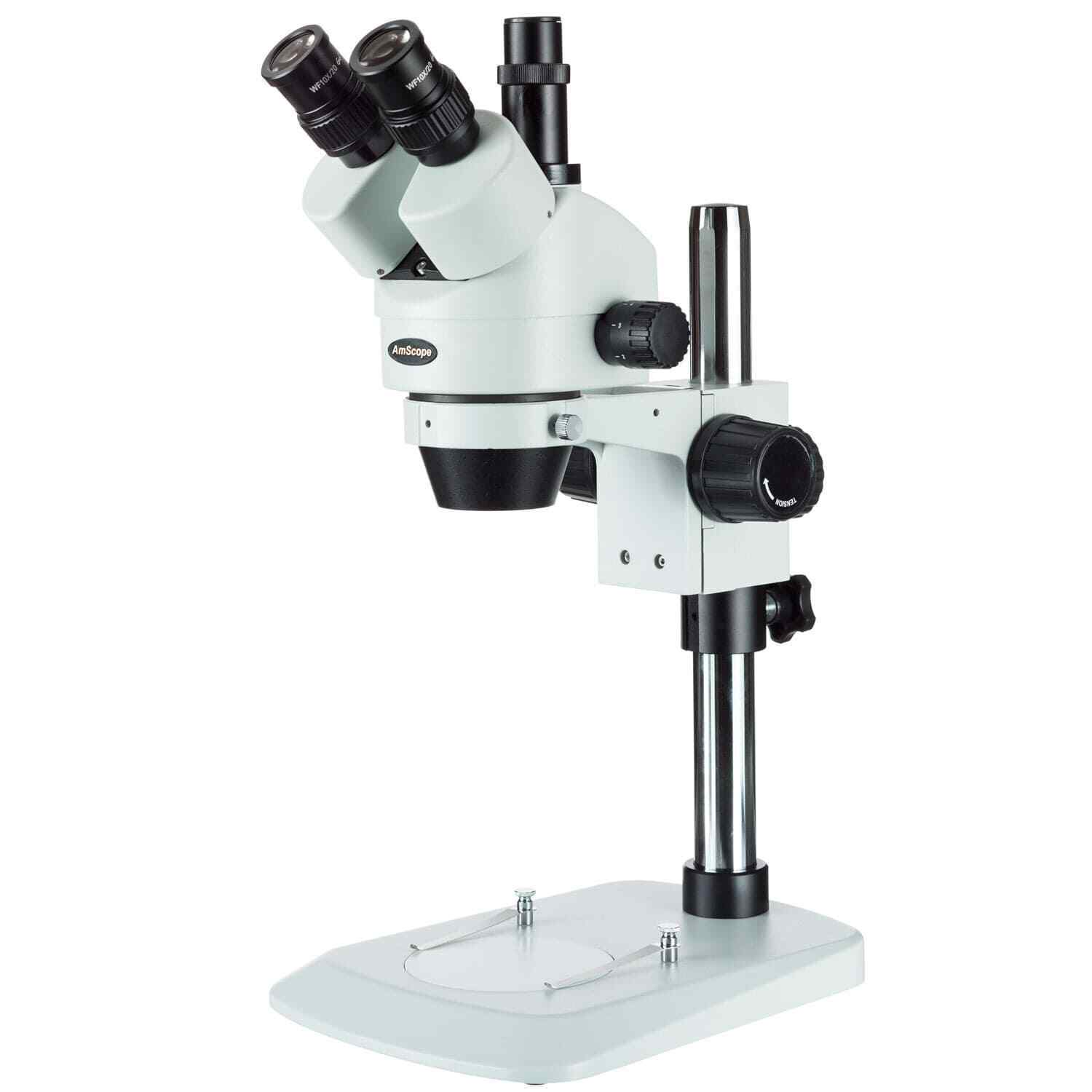

The SM-1TN-V203 stereo microscope is an ideal microscope for industrial inspection or biological analysis, with its 7X-45X zoom range. The tabletop-stand design allows for a simplified workspace, while allowing for various lighting arrangements. The 14" pillar offers plenty of clearance, especially when using optional accessory lenses and ring-lights. The reversible black/white stage plate provides varied background-contrast.
The trinocular photo port adds the benefit of top-mounting a camera for documentation or live video feeds. The axial mounting provides a more-secure support for camera attachments.
Features:
• 7X-45X super wide zoom magnification power
• High resolution with great flatness and contrast, giving sharp and clear images
• Trinocular head with 45 degree inclined 360 degree swiveling eye tubes
• 30mm super widefield high-eyepoint eyepieces with a 20mm field of view
• Sharp stereo erect images with a wide field of view
• Crystal clear original true color microscope images
• Dual eye tubes with adjustable diopters
• Large working distance
• Contemporary table stand
• Accurate alignment reduces eye strain for longer periods of viewing
• Full optical glass elements
• Precise ground glass lenses
• Adjustable interpupillary distance
• Rubber eye-guards included
• Manufactured under ISO 9001 quality control standard
• Five (5) year manufacturer warranty for microscope
Specifications:
• Head: 360 degree rotatable 45 degree inclined trinocular
• Ocular Port Diameter: 30mm
• Eyepieces: WF10X/20 10X super-widefield, high-eyepoint with 20mm field-number
• Zoom Range: 0.7X-4.5X
• Diopter Adjustment: +/- 5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 4" (100mm)
• Stand Base: 10.75" x 7-7/8" x 7/8"
• Pillar Height: 14"
• Round Plate: 3-3/4" (95mm) in diameter
• Accessories: Paired eye-caps
Packing List:
• One Trinocular Stereo Zoom Head
• One Pair of SUPER Widefield 10X Eyepieces
• One Pillar Table Stand
• One Focusing Rack
• One Round Plastic Plate
• One Pair of Eye-Guards
• One Pair of Clips
• One Dust Cover
User's Manual Download
Package Dimension: 17" x 13" x 15.5" (432mm x 330mm x 390mm)
Shipping Weight: 15 lbs
